Description

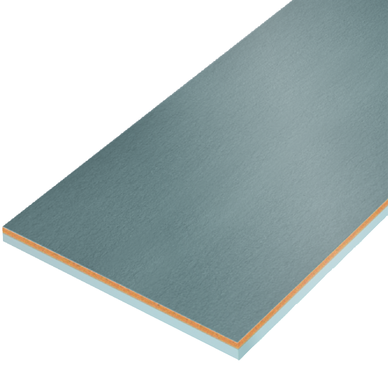

Strip, maintenance-free, material in accordance with ISO 3547-4, with steel backing
INA
EGS15260-E40-S3E-Y
Strip
od EUR 168.29z VAT
netto EUR 136.82 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
EGS15260-E40-S3E-Y—
EUR 168.29
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)EGS15260-E40-S3E-Y#N1
EAN4047643240017
Masa1.46 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Strip
- Part number (SKU)
- EGS15260-E40-S3E-Y#N1
- EAN
- 4047643240017

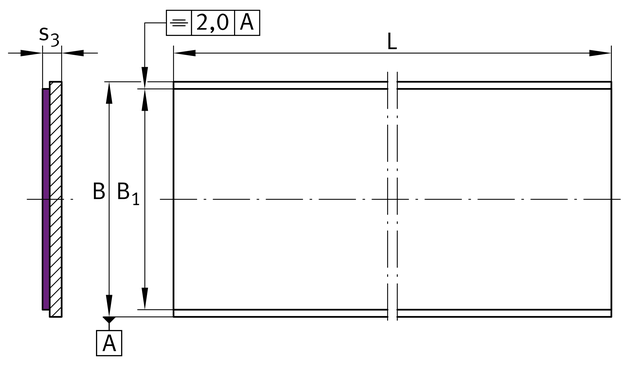

Dimensions
- Width B
- 260 mm
- Mass
- 1.46 kg
Full manufacturer specification15 parameters · expand
- Maintenance
- Maintenance free
- Minimum usable width
- 243.0 mm
- Operating temperature max.
- 280.0 °C
- Operating temperature min.
- -200.0 °C
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Strip length
- 500.0 mm
- Total length lower tolerance
- 0.0 mm
- Total width upper tolerance
- 3.0 mm
- Wall thickness
- 1.505 mm
- Wall thickness lower tolerance
- -0.05 mm
- Wall thickness upper tolerance
- 0.0 mm
- Width , lower tolerance
- -2.0 mm
- Width, upper tolerance
- 2.0 mm
