Description

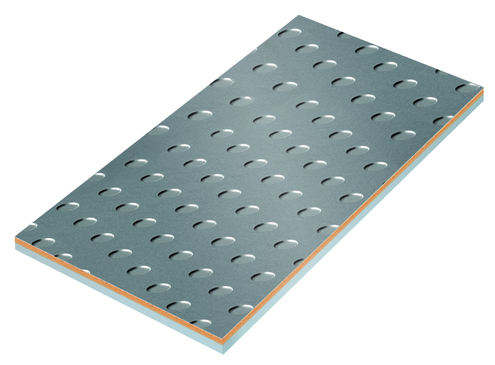

Strips, low-maintenance, material in accordance with ISO 3547-4, with steel backing
INA
EGS15200-E50-V
Strip
od EUR 36.74z VAT
netto EUR 29.87 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
EGS15200-E50-V—
EUR 36.74
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)EGS15200-E50-V#N1
EAN4054362047605
Masa829 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
21 parametersIdentification
- Manufacturer
- INA
- Type
- Strip
- Part number (SKU)
- EGS15200-E50-V#N1
- EAN
- 4054362047605
Dimensions
- Width B
- 200 mm
- Mass
- 829 g
Full manufacturer specification15 parameters · expand
- Maintenance
- Low-maintenance
- Minimum usable width
- 190.0 mm
- Operating temperature max.
- 110.0 °C
- Operating temperature min.
- -40.0 °C
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Strip length
- 500.0 mm
- Total length lower tolerance
- 0.0 mm
- Total width upper tolerance
- 3.0 mm
- Wall thickness
- 1.48 mm
- Wall thickness lower tolerance
- -0.04 mm
- Wall thickness upper tolerance
- 0.0 mm
- Width , lower tolerance
- -2.0 mm
- Width, upper tolerance
- 2.0 mm
