INA
E35-XL-KTT-B-2C-OSE
Radial insert ball bearing
⌀35 × 72 × 37.7 mm
od EUR 45.45z VAT
netto EUR 36.95 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
E35-XL-KTT-B-2C-OSE—
EUR 45.45
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)E35-XL-KTT-B-2C-OSE#N1
EAN4064327237422
Wymiary⌀35 × 72 × 37.7 mm
Masa454 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- E35-XL-KTT-B-2C-OSE#N1
- EAN
- 4064327237422

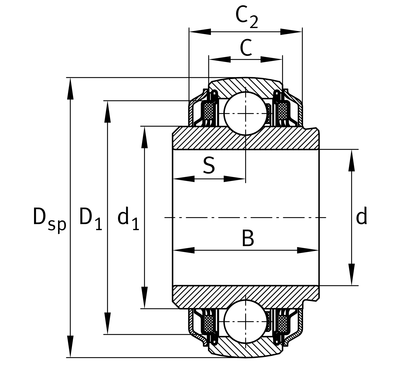

Dimensions
- Bore d
- 35 mm
- Outside diameter D
- 72 mm
- Width B
- 37.7 mm
- Mass
- 454 g
Load ratings and operation
- Dynamic load rating C
- 27500 N
- Static load rating C₀
- 15300 N
- Sealing
- KTT
Full manufacturer specification13 parameters · expand
- Distance raceway
- 18.8 mm
- Marketing category
- XL
- Operating temperature max.
- 10.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- REACH
- REACH conform
- Rib diameter inner ring
- 46.8 mm
- RoHS
- RoHS compliant
- Sealing
- KTT
- Sealing total width
- 29.2 mm
- Shape of outer surface
- B
- Width, outer ring
- 19.0 mm
- Without locking device
- OSE
