Description
Radial insert ball bearing E..-KRR-FA101/106
INA
E35-KRR-FA101/106
Radial insert ball bearing
⌀35 × 72 × 37.7 mm
od EUR 51.13z VAT
netto EUR 41.57 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
E35-KRR-FA101/106—
EUR 51.13
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)E35-KRR-FA101/106#N1
EAN4012802843569
Wymiary⌀35 × 72 × 37.7 mm
Masa580 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
28 parametersIdentification
- Manufacturer
- INA
- Type
- Radial insert ball bearing
- Part number (SKU)
- E35-KRR-FA101/106#N1
- EAN
- 4012802843569

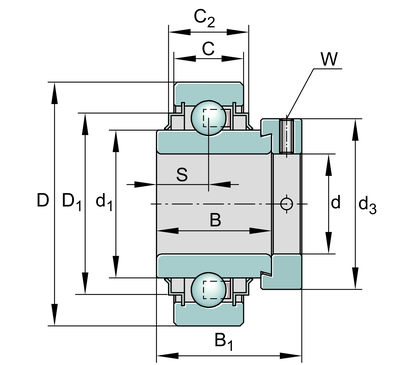

Dimensions
- Bore d
- 35 mm
- Outside diameter D
- 72 mm
- Width B
- 37.7 mm
- Mass
- 580 g
Load ratings and operation
- Dynamic load rating C
- 25500 N
- Static load rating C₀
- 15300 N
- Sealing
- KRR
Full manufacturer specification17 parameters · expand
- Calculation factor
- 13.8
- Distance raceway
- 18.6 mm
- Fatigue load limit, radial
- 730.0 N
- Locking collar total width
- 51.3 mm
- Manufacturing instruction
- FA101/106
- Operating temperature max.
- 180.0 °C
- Operating temperature min.
- -40.0 °C
- Outside diameter locking collar/locknut
- 55.0 mm
- Outside diameter seal
- 60.3 mm
- PFAS
- nein
- REACH
- REACH conform
- Rib diameter inner ring
- 46.8 mm
- RoHS
- RoHS compliant
- Sealing
- KRR
- Sealing total width
- 22.6 mm
- Width of flats
- 5.0 mm
- Width, outer ring
- 19.0 mm
