Description

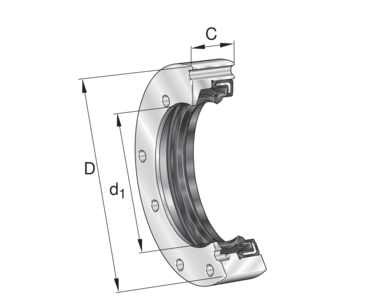

Seal carrier assemblies DRS, for ZARF, ZARF..-L, with integral rotary shaft seal
INA
DRS60150
Seal carrier Assy
od EUR 420.76z VAT
netto EUR 342.08 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
DRS60150—
EUR 420.76
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)DRS60150#N1
EAN4012802127508
Masa1.64 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
18 parametersIdentification
- Manufacturer
- INA
- Type
- Seal carrier Assy
- Part number (SKU)
- DRS60150#N1
- EAN
- 4012802127508
Dimensions
- Outside diameter D
- 150 mm
- Mass
- 1.64 kg
Full manufacturer specification12 parameters · expand
- Bearing designation
- ZARF60150(-L)-TV
- Inner diameter centering
- 105.0 mm
- Inner diameter centering seal lip
- 105.0 mm
- Number of screws
- 4.0
- Outside diameter seal
- 125.0 mm
- PFAS
- nein
- Pitch circle diameter (holes)
- 137.5 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Screw size
- M5X40
- Width seal
- 12.0 mm
- Width wave carrier
- 30.0 mm
