Description

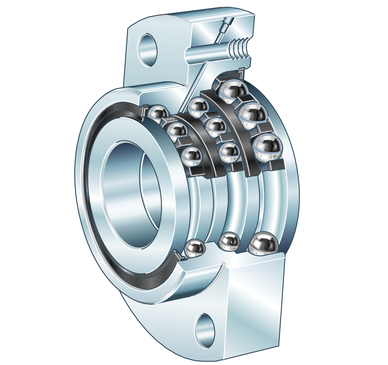

Angular contact ball bearing units DKLFA..-2RS, double direction, for screw mounting, lip seals on both sides, with flattened flange
INA
DKLFA2080-2RS
Axial angular contact ball bearing
⌀20 × 52 × 35 mm
od EUR 795.34z VAT
netto EUR 646.62 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
DKLFA2080-2RS—
EUR 795.34
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)DKLFA2080-2RS#N1
EAN4012802440355
Wymiary⌀20 × 52 × 35 mm
Masa683 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
54 parametersIdentification
- Manufacturer
- INA
- Type
- Axial angular contact ball bearing
- Part number (SKU)
- DKLFA2080-2RS#N1
- EAN
- 4012802440355

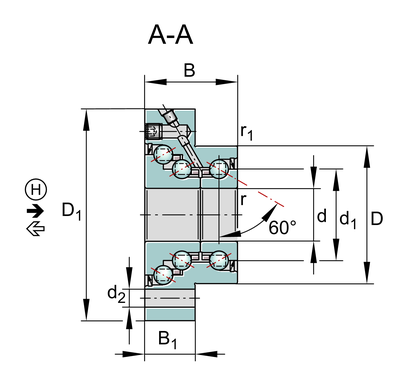

Dimensions
- Bore d
- 20 mm
- Outside diameter D
- 52 mm
- Width B
- 35 mm
- Mass
- 683 g
Load ratings and operation
- Dynamic load rating C
- 26000 N
- Static load rating C₀
- 47000 N
- Sealing
- 2RS
Full manufacturer specification43 parameters · expand
- Axial runout
- 5.0 µm
- Basic dynamic load rating, axial
- 26000.0 N
- Basic dynamic load rating, axial HL
- 44500.0 N
- Basic static load rating, axial
- 47000.0 N
- Basic static load rating, axial HL
- 110000.0 N
- Bearing friction torque
- 0.45 Nm
- Bore diameter lower tolerance
- -0.01 mm
- Bore diameter upper tolerance
- 0.0 mm
- Fatigue load limit, axial
- 2070.0 N
- Fatigue load limit, axial HL
- 2800.0 N

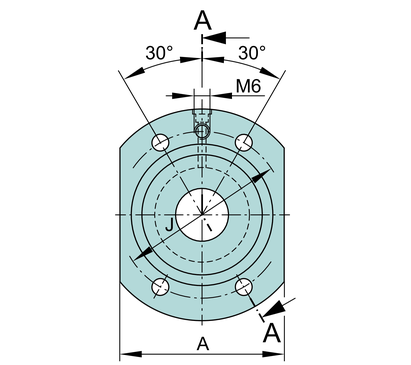

- Fixing boring diameter
- 6.8 mm
- Fixing scresw DIN EN ISO 4762 10.9 (not included)
- M6
- Flange diameter
- 80.0 mm
- Flange width
- 62.0 mm
- Limiting speed for grease lubrication
- 5000.0 1/min
- Mass moment of inertia
- 0.553 kg*cm²

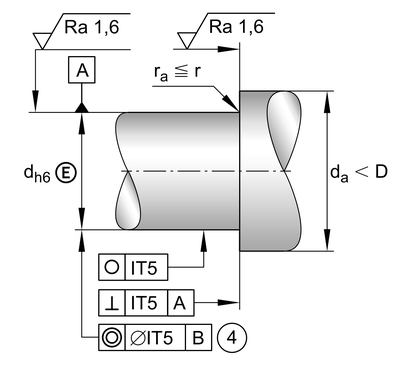

- Maximum diameter of shaft shoulder
- 43.0 mm
- Minimum chamfer dimension
- 0.3 mm
- Minimum chamfer dimension 1
- 0.6 mm
- Minimum diameter shaft shoulder
- 25.0 mm
- Number of screws
- 4.0
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter lower tolerance
- -0.013 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein
- Pitch circle diameter (holes)
- 63.0 mm
- REACH
- REACH conform
- Recommended INA precision locknut for axial locking 1,2
- AM20
- Recommended INA precision locknut for radial locking 1,2
- ZMA20/38
- Recommended INA precision locknut for radial locking 3
- ZM25
- Required locknut force axial 1
- 8580.0 N
- Rib diameter inner ring
- 34.5 mm
- Rigidity axial
- 750.0 N/µm
- Rigidity axial (HL)
- 1100.0 N/µm
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Thermally permissible speed
- 2200.0 1/min
- Thickness of flange
- 19.0 mm
- Tightening torque nut
- 18.0 Nm
- Tilting stiffness
- 260.0 Nm/mrad
- Width lower tolerance
- -0.25 mm
- Width upper tolerance
- 0.0 mm
