Description
Four point contact bearing, Thin section bearing CSXD, brass sheet metal cage
INA
CSXD110-HLE
Four-point contact bearing
⌀279.4 × 304.8 × 12.7 mm
od EUR 2,357.76z VAT
netto EUR 1,916.88 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
CSXD110-HLE—
EUR 2,357.76
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)CSXD110-HLE#N1
EAN4054362039433
Wymiary⌀279.4 × 304.8 × 12.7 mm
Masa930 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
28 parametersIdentification
- Manufacturer
- INA
- Type
- Four-point contact bearing
- Part number (SKU)
- CSXD110-HLE#N1
- EAN
- 4054362039433
- Cage
- YH
- Tolerance class
- PL1

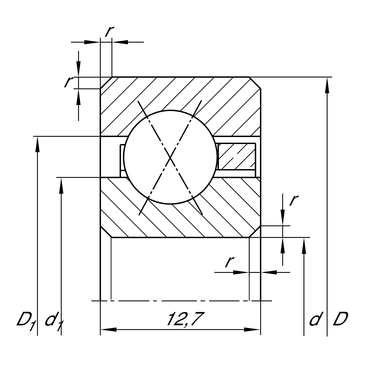

Dimensions
- Bore d
- 279.4 mm
- Outside diameter D
- 304.8 mm
- Width B
- 12.7 mm
- Mass
- 930 g
- Radial clearance
- PL1
Load ratings and operation
- Dynamic load rating C
- 23400 N
- Static load rating C₀
- 55000 N
- Limiting speed
- 960 1/min
Full manufacturer specification14 parameters · expand
- Cage
- YH
- Contact angle
- 30.0 °
- Logistic code
- HLE
- Lubricant
- Without
- Minimum chamfer dimension
- 1.5 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Radial internal clearance
- PL1
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant
- Shoulder diameter inner ring
- 288.8 mm
- Shoulder diameter outer ring
- 295.4 mm
- Type of Seal
- Without
