Description

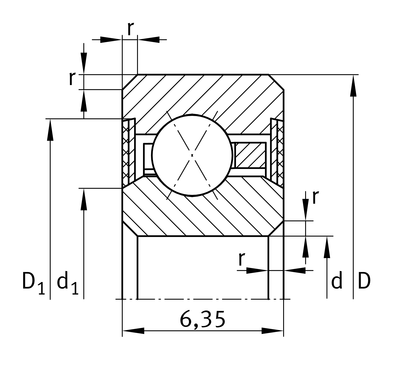

Four point contact bearing, Thin section bearing CSXA..-2RS, seals, brass sheet metal cage
INA
CSXA050-2RS-HLE
Four-point contact bearing
⌀127 × 139.7 × 6.35 mm
od EUR 1,312.04z VAT
netto EUR 1,066.70 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
CSXA050-2RS-HLE—
EUR 1,312.04
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)CSXA050-2RS-HLE#N1
EAN4012802509618
Wymiary⌀127 × 139.7 × 6.35 mm
Masa110 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
30 parametersIdentification
- Manufacturer
- INA
- Type
- Four-point contact bearing
- Part number (SKU)
- CSXA050-2RS-HLE#N1
- EAN
- 4012802509618
- Cage
- YH
- Tolerance class
- PL1
Dimensions
- Bore d
- 127 mm
- Outside diameter D
- 139.7 mm
- Width B
- 6.35 mm
- Mass
- 110 g
- Radial clearance
- PL1
Load ratings and operation
- Dynamic load rating C
- 6100 N
- Static load rating C₀
- 11200 N
- Limiting speed
- 1790 1/min
Full manufacturer specification16 parameters · expand
- Cage
- YH
- Caliber diameter inner ring
- 130.8 mm
- Caliber diameter outer ring
- 136.1 mm
- Contact angle
- 30.0 °
- Logistic code
- HLE
- Lubricant
- Lubricating grease
- Minimum chamfer dimension
- 0.6 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -25.0 °C
- PFAS
- nein
- Radial internal clearance
- PL1
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shoulder diameter inner ring
- 131.7 mm
- Shoulder diameter outer ring
- 135.0 mm
- Type of Seal
- 2RS
