Description
Angular contact ball bearing, Thin section bearing CSEF, brass sheet metal cage
INA
CSEF055-HLE
Angular contact ball bearing
⌀139.7 × 177.8 × 19.05 mm
od EUR 1,663.16z VAT
netto EUR 1,352.16 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
CSEF055-HLE—
EUR 1,663.16
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)CSEF055-HLE#N1
EAN4054364141325
Wymiary⌀139.7 × 177.8 × 19.05 mm
Masa1.17 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
27 parametersIdentification
- Manufacturer
- INA
- Type
- Angular contact ball bearing
- Part number (SKU)
- CSEF055-HLE#N1
- EAN
- 4054364141325
- Cage
- YP
- Tolerance class
- PL1

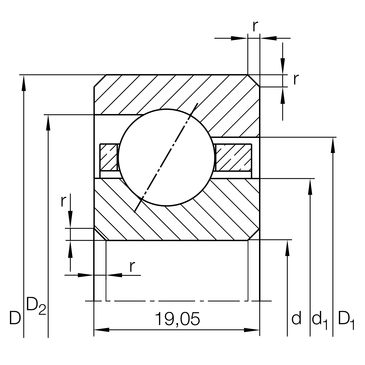

Dimensions
- Bore d
- 139.7 mm
- Outside diameter D
- 177.8 mm
- Width B
- 19.05 mm
- Mass
- 1.17 kg
Load ratings and operation
- Dynamic load rating C
- 26500 N
- Static load rating C₀
- 32000 N
- Limiting speed
- 3450 1/min
Full manufacturer specification14 parameters · expand
- Cage
- YP
- Contact angle
- 30.0 °
- Logistic code
- HLE
- Lubricant
- Without
- Minimum chamfer dimension
- 2.0 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant
- Shoulder diameter inner ring
- 153.8 mm
- Shoulder diameter on outer ring small side face
- 168.0 mm
- Shoulder diameter on outer ring wide side face
- 163.7 mm
- Type of seal
- Without
