Description
Angular contact ball bearing, Thin section bearing CSED, brass sheet metal cage
INA
CSED040-HLE
Angular contact ball bearing
⌀101.6 × 127 × 12.7 mm
od EUR 1,010.94z VAT
netto EUR 821.90 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
CSED040-HLE—
EUR 1,010.94
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)CSED040-HLE#N1
EAN4054362038146
Wymiary⌀101.6 × 127 × 12.7 mm
Masa360 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
27 parametersIdentification
- Manufacturer
- INA
- Type
- Angular contact ball bearing
- Part number (SKU)
- CSED040-HLE#N1
- EAN
- 4054362038146
- Cage
- YP
- Tolerance class
- PL1

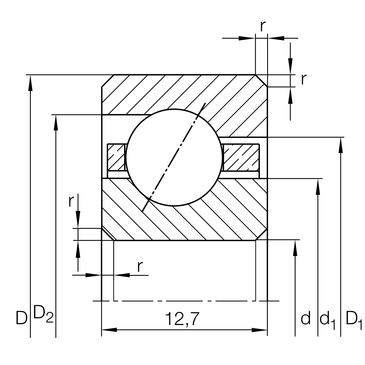

Dimensions
- Bore d
- 101.6 mm
- Outside diameter D
- 127 mm
- Width B
- 12.7 mm
- Mass
- 360 g
Load ratings and operation
- Dynamic load rating C
- 12300 N
- Static load rating C₀
- 13900 N
- Limiting speed
- 4950 1/min
Full manufacturer specification14 parameters · expand
- Cage
- YP
- Contact angle
- 30.0 °
- Logistic code
- HLE
- Lubricant
- Without
- Minimum chamfer dimension
- 1.5 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant
- Shoulder diameter inner ring
- 111.0 mm
- Shoulder diameter on outer ring small side face
- 120.4 mm
- Shoulder diameter on outer ring wide side face
- 117.6 mm
- Type of seal
- Without
