Description
Angular contact ball bearing, Thin section bearing CSEAA..-TV, plastic cage
INA
CSEAA015-TV-HLE
Angular contact ball bearing

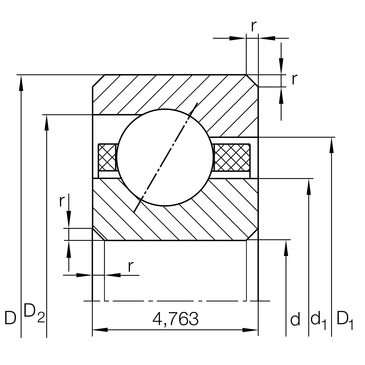

⌀38.1 × 47.625 × 4.763 mm
od EUR 378.29z VAT
netto EUR 307.55 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
CSEAA015-TV-HLE—
EUR 378.29
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)CSEAA015-TV-HLE#N1
EAN4054362037989
Wymiary⌀38.1 × 47.625 × 4.763 mm
Masa20 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
27 parametersIdentification
- Manufacturer
- INA
- Type
- Angular contact ball bearing
- Part number (SKU)
- CSEAA015-TV-HLE#N1
- EAN
- 4054362037989
- Cage
- TV
- Tolerance class
- PL1
Dimensions
- Bore d
- 38.1 mm
- Outside diameter D
- 47.625 mm
- Width B
- 4.763 mm
- Mass
- 20 g
Load ratings and operation
- Dynamic load rating C
- 2050 N
- Static load rating C₀
- 1860 N
- Limiting speed
- 14300 1/min
Full manufacturer specification14 parameters · expand
- Cage
- TV
- Contact angle
- 30.0 °
- Logistic code
- HLE
- Lubricant
- Without
- Minimum chamfer dimension
- 0.38 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shoulder diameter inner ring
- 41.7 mm
- Shoulder diameter on outer ring small side face
- 45.1 mm
- Shoulder diameter on outer ring wide side face
- 44.1 mm
- Type of seal
- Without
