Description
Deep groove ball bearing, Thin section bearing CSCU..-2RS, seals, brass sheet metal cage
INA
CSCU065-2RS-HLE
Deep groove ball bearing

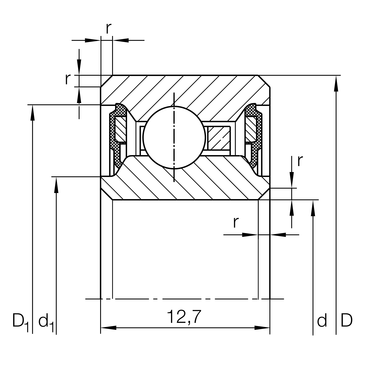

⌀165.1 × 184.15 × 12.7 mm
od EUR 1,376.19z VAT
netto EUR 1,118.85 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
CSCU065-2RS-HLE—
EUR 1,376.19
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)CSCU065-2RS-HLE#N1
EAN4054362037750
Wymiary⌀165.1 × 184.15 × 12.7 mm
Masa390 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
30 parametersIdentification
- Manufacturer
- INA
- Type
- Deep groove ball bearing
- Part number (SKU)
- CSCU065-2RS-HLE#N1
- EAN
- 4054362037750
- Cage
- YH
- Tolerance class
- PL1
Dimensions
- Bore d
- 165.1 mm
- Outside diameter D
- 184.15 mm
- Width B
- 12.7 mm
- Mass
- 390 g
- Radial clearance
- PL1
Load ratings and operation
- Dynamic load rating C
- 9300 N
- Static load rating C₀
- 13200 N
- Limiting speed
- 1570 1/min
Full manufacturer specification16 parameters · expand
- Cage
- YH
- Caliber diameter inner ring
- 168.9 mm
- Caliber diameter outer ring
- 178.7 mm
- Dimensional / heat stabilization
- SN
- Logistic code
- HLE
- Lubricant
- Lubricating grease
- Minimum chamfer dimension
- 0.38 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -25.0 °C
- PFAS
- nein
- Radial internal clearance
- PL1
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shoulder diameter inner ring
- 172.1 mm
- Shoulder diameter outer ring
- 177.1 mm
- Type of Seal
- 2RS
