Description
Deep groove ball bearing, Thin section bearing CSCC, brass sheet metal cage
INA
CSCC080-HLE
Deep groove ball bearing
⌀203.2 × 222.25 × 9.525 mm
od EUR 1,592.20z VAT
netto EUR 1,294.47 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
CSCC080-HLE—
EUR 1,592.20
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)CSCC080-HLE#N1
EAN4054362037354
Wymiary⌀203.2 × 222.25 × 9.525 mm
Masa380 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
28 parametersIdentification
- Manufacturer
- INA
- Type
- Deep groove ball bearing
- Part number (SKU)
- CSCC080-HLE#N1
- EAN
- 4054362037354
- Cage
- YH
- Tolerance class
- PL1

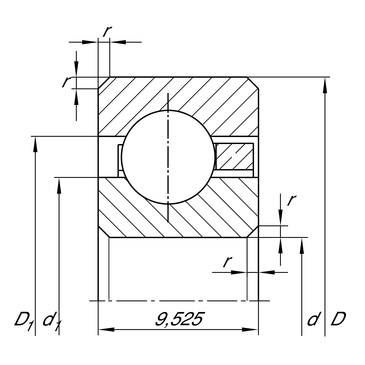

Dimensions
- Bore d
- 203.2 mm
- Outside diameter D
- 222.25 mm
- Width B
- 9.525 mm
- Mass
- 380 g
- Radial clearance
- PL1
Load ratings and operation
- Dynamic load rating C
- 10000 N
- Static load rating C₀
- 16200 N
- Limiting speed
- 2650 1/min
Full manufacturer specification14 parameters · expand
- Cage
- YH
- Dimensional / heat stabilization
- SN
- Logistic code
- HLE
- Lubricant
- Without
- Minimum chamfer dimension
- 1.0 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Radial internal clearance
- PL1
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant
- Shoulder diameter inner ring
- 210.2 mm
- Shoulder diameter outer ring
- 215.5 mm
- Type of Seal
- Without
