Description
Deep groove ball bearing, Thin section bearing CSCB, brass sheet metal cage
INA
CSCB025-HLE
Deep groove ball bearing

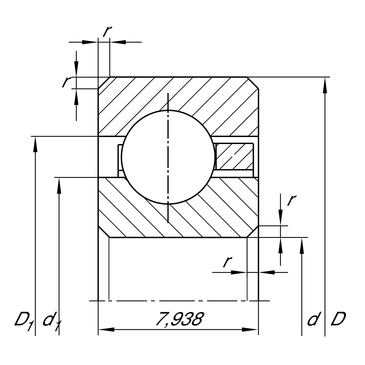

⌀63.5 × 79.375 × 7.938 mm
od EUR 464.19z VAT
netto EUR 377.39 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
CSCB025-HLE—
EUR 464.19
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)CSCB025-HLE#N1
EAN4054371142360
Wymiary⌀63.5 × 79.375 × 7.938 mm
Masa90 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
27 parametersIdentification
- Manufacturer
- INA
- Type
- Deep groove ball bearing
- Part number (SKU)
- CSCB025-HLE#N1
- EAN
- 4054371142360
- Cage
- YH
- Tolerance class
- PL1
Dimensions
- Bore d
- 63.5 mm
- Outside diameter D
- 79.375 mm
- Width B
- 7.938 mm
- Mass
- 90 g
- Radial clearance
- PL1
Load ratings and operation
- Dynamic load rating C
- 5100 N
- Static load rating C₀
- 4400 N
- Limiting speed
- 8100 1/min
Full manufacturer specification13 parameters · expand
- Cage
- YH
- Dimensional / heat stabilization
- SN
- Logistic code
- HLE
- Lubricant
- Without
- Minimum chamfer dimension
- 1.0 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Radial internal clearance
- PL1
- REACH
- REACH compliant with declarable lead proportion
- Shoulder diameter inner ring
- 69.4 mm
- Shoulder diameter outer ring
- 73.5 mm
- Type of Seal
- Without
