Description
Deep groove ball bearing, Thin section bearing CSCAA..-TV, plastic cage
INA
CSCAA010-TV-HLE
Deep groove ball bearing
⌀25.4 × 34.925 × 4.763 mm
od EUR 301.68z VAT
netto EUR 245.27 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
CSCAA010-TV-HLE—
EUR 301.68
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)CSCAA010-TV-HLE#N1
EAN4054362037101
Wymiary⌀25.4 × 34.925 × 4.763 mm
Masa10 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
28 parametersIdentification
- Manufacturer
- INA
- Type
- Deep groove ball bearing
- Part number (SKU)
- CSCAA010-TV-HLE#N1
- EAN
- 4054362037101
- Cage
- TV
- Tolerance class
- PL1

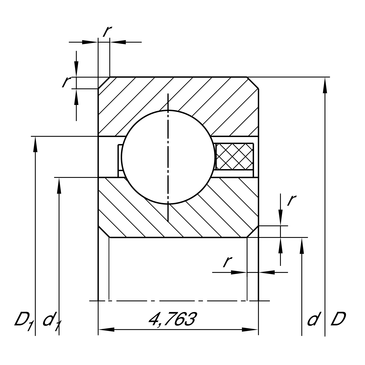

Dimensions
- Bore d
- 25.4 mm
- Outside diameter D
- 34.925 mm
- Width B
- 4.763 mm
- Mass
- 10 g
- Radial clearance
- PL1
Load ratings and operation
- Dynamic load rating C
- 1790 N
- Static load rating C₀
- 1080 N
- Limiting speed
- 20000 1/min
Full manufacturer specification14 parameters · expand
- Cage
- TV
- Dimensional / heat stabilization
- SN
- Logistic code
- HLE
- Lubricant
- Without
- Minimum chamfer dimension
- 0.38 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Radial internal clearance
- PL1
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shoulder diameter inner ring
- 29.0 mm
- Shoulder diameter outer ring
- 31.4 mm
- Type of Seal
- Without
