Description

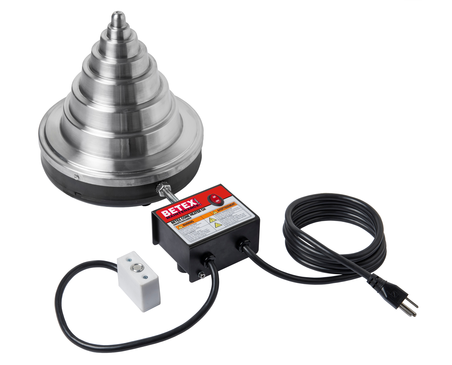

BETEX CONE-HEATER-CHC, for heating rolling bearings, bearing inner rings and other rotary machine elements, with temperature check and heat retention function
Betex
CONE-HEATER-CHC-230V
Heating device, electric
od EUR 739.81z VAT
netto EUR 601.47 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
CONE-HEATER-CHC-230V—
EUR 739.81
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)CONE-HEATER-CHC-230V#N1
EAN4064328707559
Masa4.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
18 parametersIdentification
- Manufacturer
- Betex
- Type
- Heating device, electric
- Part number (SKU)
- CONE-HEATER-CHC-230V#N1
- EAN
- 4064328707559
Dimensions
- Mass
- 4.00 kg
Full manufacturer specification13 parameters · expand
- Amperage
- 3.2 A

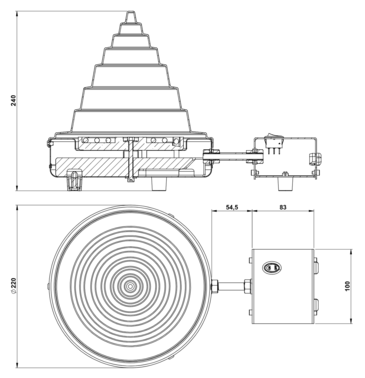

- Dimensions [LxWxH] (mm)
- 365 x 220 x 240

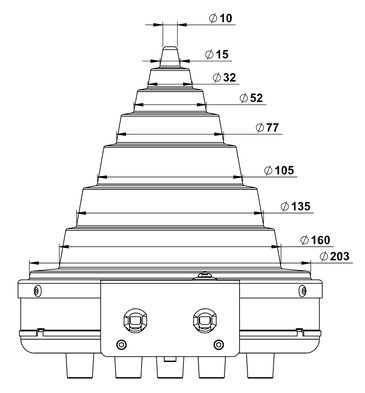

- Max. inner diameter workpiece
- 203.0 mm
- Max. outer diameter workpiece
- 305.0 mm
- Max. workpiece weight
- 7.0 kg
- Min. inner diameter workpiece
- 10.0 mm
- Power
- 0.725 kW
- Power frequency
- 50 – 60 Hz
- Product specifics
- Easy to use, lightweight, suitable for various workpiece sizes, aluminum housing ensures even, quick heating of the workpiece
- Temperature check to fixed value
- 120.0 °C
- Temperature hold
- +
- Version
- CHC
- Voltage
- 230.0 V
