Description

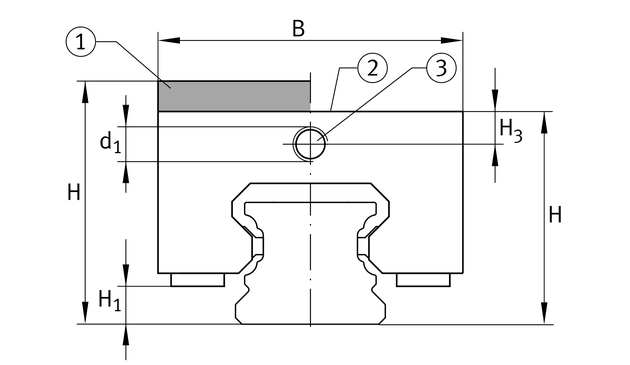

Braking and clamping element BKE.TKSD.., hydraulic connector on end face, for six-row linear recirculating ball bearing and guideway assembly
INA
BKE.TKSD35
Braking/clamping element
od EUR 1,358.72z VAT
netto EUR 1,104.65 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
BKE.TKSD35—
EUR 1,358.72
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)BKE.TKSD35#N1
EAN4054364906030
Masa2.45 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
20 parametersIdentification
- Manufacturer
- INA
- Type
- Braking/clamping element
- Part number (SKU)
- BKE.TKSD35#N1
- EAN
- 4054364906030
Dimensions
- Mass
- 2.45 kg
Full manufacturer specification15 parameters · expand
- Adapter plate
- ohne
- Clamping force
- 2800.0 N
- Distance
- 5.0 mm
- Height sytem
- 48.0 mm
- Hole pattern
- 100.0 mm
- Length braking and clamping element
- 120.0 mm
- Mounting dimension
- 8.1 mm
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size Code
- 35
- Size thread
- M8x1
- Size thread above for DIN ISO 4762-12.9
- M8
- Space (system)
- 6.6 mm
- Tightening torque above
- 42.2 Nm
- Width of braking and clamping element
- 69.0 mm
