Description

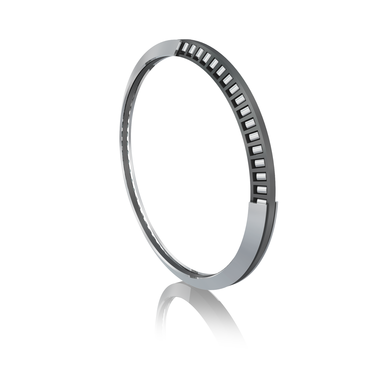

Axial angular contact roller bearing
INA
AXS150164
Axial conical thrust cage needle roller bearing
⌀150 × 164 mm
od EUR 115.77z VAT
netto EUR 94.12 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
AXS150164—
EUR 115.77
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)AXS150164#N2
EAN4054362029267
Wymiary⌀150 × 164 mm
Opakowanie2 szt.
Minimum order2 szt.
Masa102 g
Ten towar sprzedawany jest w opakowaniach po 2 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Axial conical thrust cage needle roller bearing
- Part number (SKU)
- AXS150164#N2
- EAN
- 4054362029267
Dimensions
- Bore d
- 150 mm
- Outside diameter D
- 164 mm
- Mass
- 102 g
Load ratings and operation
- Dynamic load rating C
- 35500 N
- Static load rating C₀
- 190000 N
Full manufacturer specification17 parameters · expand
- Basic dynamic load rating, axial
- 35500.0 N
- Basic static load rating, axial
- 190000.0 N
- Centering in the housing
- 164.0 mm
- Centering on the shaft
- 150.0 mm
- Centering tolerance in the housing max.
- -0.15 mm
- Centering tolerance in the housing min.
- -0.25 mm
- Centering tolerance on the shaft max.
- 0.25 mm
- Centering tolerance on the shaft min.
- 0.15 mm
- Contact angle
- 60.0 °
- Height
- 6.0 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Tolerance height max.
- 0.0 mm
- Tolerance height min.
- -0.5 mm
