Description

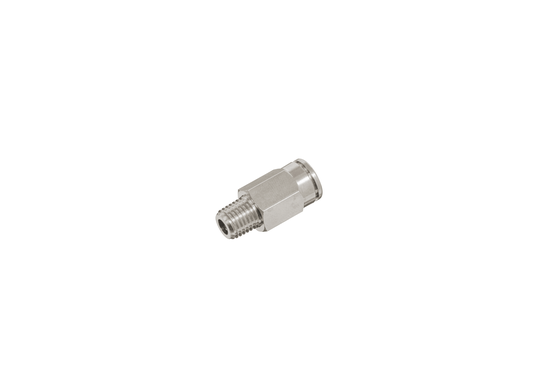

Hose connection part straight, inch thread
Schaeffler
ARCALUB-X.TUBEFIT-G1/8-SAT188G
Connector for lubricator
od EUR 11.22z VAT
netto EUR 9.12 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ARCALUB-X.TUBEFIT-G1/8-SAT188G—
EUR 11.22
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)ARCALUB-X.TUBEFIT-G1/8-SAT188G#S1
EAN4054364221591
Masa20 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
18 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Connector for lubricator
- Part number (SKU)
- ARCALUB-X.TUBEFIT-G1/8-SAT188G#S1
- EAN
- 4054364221591
Dimensions
- Mass
- 20 g
Load ratings and operation
- Sealing
- Flat sealing by O ring

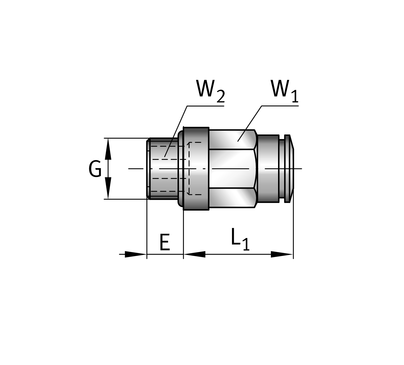

Full manufacturer specification12 parameters · expand
- Hexagon socket nominal dimension
- 5.0 mm
- Hose
- push fit
- Hose diameter
- 8.0 mm
- Hose Insertion depth
- 18.0 mm
- Length
- 20.5 mm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Seal
- Flat sealing by O ring
- Thread
- G1/8
- Thread length
- 6.0 mm
- Width across flats
- 13.0 mm
