Description

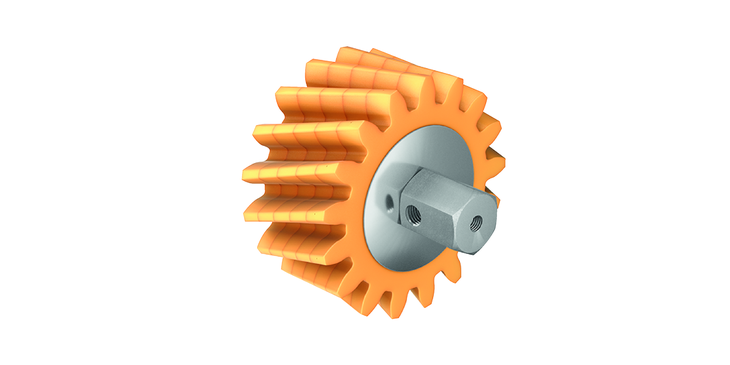

Lubrication gear left hand helical teeth, lubricant feed radial
Schaeffler
ARCALUB-X.PINION-MD1,5-Z24-B15-SL-W
Lubrication gear wheel
od EUR 172.67z VAT
netto EUR 140.38 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ARCALUB-X.PINION-MD1,5-Z24-B15-SL-W—
EUR 172.67
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)ARCALUB-X.PINION-MD1,5-Z24-B15-SL-W#S
EAN4054372916823
Masa500 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
21 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Lubrication gear wheel
- Part number (SKU)
- ARCALUB-X.PINION-MD1,5-Z24-B15-SL-W#S
- EAN
- 4054372916823
Dimensions
- Mass
- 500 g
Load ratings and operation
- Operating temperature
- -30 °C ... +140 °C
Full manufacturer specification15 parameters · expand
- Design
- left hand helical teeth
- Helix angle
- 19.53 °
- Lubricant
- Oil, greases up to NLGI 2
- Lubricant feed
- radial
- Material
- open cell PU foam
- Max. permissible circumferential speed at outside diameter
- 5.0 m/s
- Modulus
- 1.5 mm
- Operating temperature
- -30 °C ... +140 °C
- PFAS
- nein
- Pitch circle diameter
- 38.2 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Teeth number
- 24.0
- Usage
- Relubrication of tooth sets
- Version
- SL
