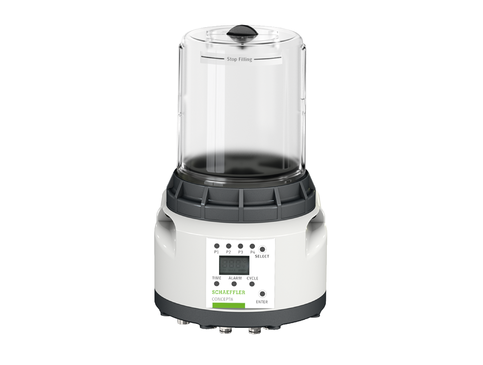

CONCEPT8, Multi-point lubricator
Schaeffler
ARCALUB-C8-4P-OIL
Automatic lubricator CONCEPT
od EUR 1,284.17z VAT
netto EUR 1,044.04 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
ARCALUB-C8-4P-OIL—
EUR 1,284.17
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)ARCALUB-C8-4P-OIL#S1
EAN4054364229009
Masa3.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
34 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Automatic lubricator CONCEPT
- Part number (SKU)
- ARCALUB-C8-4P-OIL#S1
- EAN
- 4054364229009
Dimensions
- Mass
- 3.00 kg
Full manufacturer specification29 parameters · expand
- Connection
- PA hose
- Connection plug for multi-function interface
- M12 x 1, 4 pin
- Controller (extern)
- PLC
- Controller (integrated)
- microelectronic
- Current consumption (DC 24 V)
- ≤ 350 mA

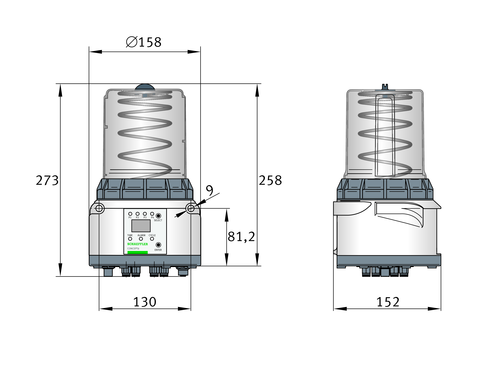

- Dimensions (mm)
- 158 x 273 x 152
- Drive system
- PP
- Error message
- Empty level, back pressure, internal error (PLC)
- Functional principle
- Piston pump
- Housing material
- Aluminium (powder coated), polyamide
- Lubricant
- Lubricating oil > 68 mm²/s
- Lubricant volume
- V800/1000
- Metering quantity (per outlet and stroke/impulse)
- 0.15 cm³
- Monitoring: fill level
- Integrated, reed switch
- Monitoring: pressure
- Integrated, electronic
- Mounting position
- vertical
- Number of lubrication points: direct
- ≤ 8
- Number of lubrication points: with progressive distributors
- > 16
- Number of lubrication points: with splitters
- ≤ 16
- Number of outlets
- 8.0
- Number of pump bodies
- 4.0
- Operating pressure, max.
- 70.0 bar
- Operating temperature, max.
- 70.0 °C
- Operating temperature, min.
- -20.0 °C
- Operating voltage
- DC 24 V
- PFAS
- nein
- Protection class
- IP65
- REACH
- REACH conform
- RoHS
- RoHS compliant
