Description

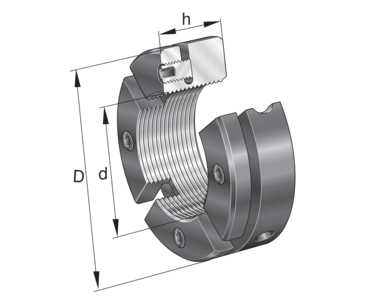

Precision locknuts AM, segments for clamping
INA
AM85
Precision locknut
od EUR 311.10z VAT
netto EUR 252.93 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
AM85—
EUR 311.10
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)AM85#N
EAN4047643259323
Masa850.27 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
22 parametersIdentification
- Manufacturer
- INA
- Type
- Precision locknut
- Part number (SKU)
- AM85#N
- EAN
- 4047643259323

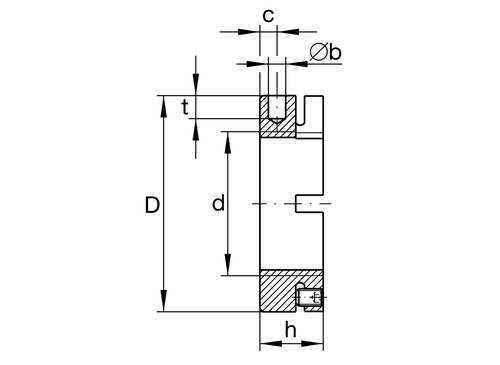

Dimensions
- Outside diameter D
- 115 mm
- Mass
- 850.27 g
Full manufacturer specification16 parameters · expand
- Bore diameter blind hole
- 8.0 mm
- Bore diameter blind hole housing fit
- H11
- Breakawag
- 930.0 Nm
- Breaking load, axial
- 690000.0 N
- Depth blind hole
- 10.0 mm
- Distance bore
- 10.0 mm
- Height
- 30.0 mm
- Mass moment of inertia
- 24.8 kg*cm²
- Mounting torque reference
- 180.0 Nm
- Mounting torque set screw
- 20.0 Nm
- PFAS
- nein
- Pitch circle diameter 1 (holes)
- 102.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Thread
- M85X2
- Threaded - threaded pin
- M10
