Description

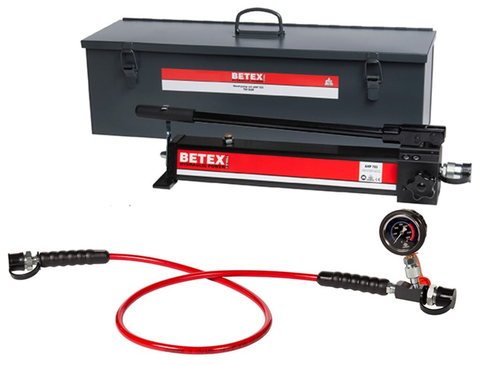

BETEX Aluminum hand pump, two-stage, in set with pressure gauge, T-piece, hose, couplings and steel box
Betex
AHP-703-SET
Hydraulic pump, manual
od EUR 1,690.07z VAT
netto EUR 1,374.04 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
AHP-703-SET—
EUR 1,690.07
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)AHP-703-SET#N1
EAN4064328034242
Masa18.10 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
22 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic pump, manual
- Part number (SKU)
- AHP-703-SET#N1
- EAN
- 4064328034242
Dimensions
- Mass
- 18.10 kg
Full manufacturer specification17 parameters · expand
- Cylinder compatibility
- single-acting
- Dimensions steel case (mm)
- 761 x 264 x 244
- Height pump
- 135.0 mm
- Hose connection pump body
- 3/8" NPT
- Length pump
- 623.0 mm
- Maximum operating pressure
- 700.0 bar
- Oil flow/stroke, 1st stage
- 12.9 cm³
- Oil flow/stroke, 2nd stage
- 2.3 cm³
- Operating pressure, 1st stage
- 20.0 bar
- PFAS
- nein
- Series
- AHP
- Use
- preferably in combination with hydraulic cylinders and hydraulic pullers HXP
- Useable oil quantity
- 1.62 l
- Version
- HC
- Volume of oil container
- 2.0 l
- Weight pump
- 6.3 kg
- Width pump
- 150.0 mm
