Description
Axial cylindrical roller bearings 894, single direction, comprising K894, GS, WS
INA
89432-M

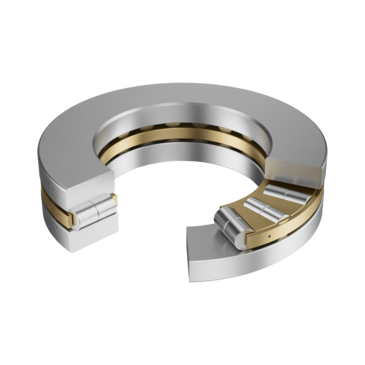

Axial cylindrical roller bearing
⌀160 × 320 mm
od EUR 4,500.87z VAT
netto EUR 3,659.24 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
89432-M—
EUR 4,500.87
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)89432-M#S
EAN4047643182973
Wymiary⌀160 × 320 mm
Masa42.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Axial cylindrical roller bearing
- Part number (SKU)
- 89432-M#S
- EAN
- 4047643182973
Dimensions
- Bore d
- 160 mm
- Outside diameter D
- 320 mm
- Mass
- 42.00 kg
Load ratings and operation
- Dynamic load rating C
- 1790000 N
- Static load rating C₀
- 6500000 N
- Limiting speed
- 1200 1/min
Full manufacturer specification16 parameters · expand
- Axial roller and cage assembly
- K89432-M
- Basic dynamic load rating, axial
- 1790000.0 N
- Basic static load rating, axial
- 6500000.0 N
- Bore diameter housing washer
- 164.0 mm
- Fatigue load limit, axial
- 600000.0 N
- Height
- 95.0 mm
- Housing Washer
- GS89432
- Minimum chamfer dimension
- 5.0 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 410.0 1/min
- Rip diameter shaft washer
- 320.0 mm
- RoHS
- RoHS compliant with declarable substances
- Shaft washer
- WS89432
