Description
Axial cylindrical roller bearings 893, single direction, comprising K893, GS, WS
INA
89414-TV
Axial cylindrical roller bearing
⌀70 × 150 mm
od EUR 750.66z VAT
netto EUR 610.29 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
89414-TV—
EUR 750.66
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)89414-TV#N1>2
EAN4054362005773
Wymiary⌀70 × 150 mm
Masa4.11 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
28 parametersIdentification
- Manufacturer
- INA
- Type
- Axial cylindrical roller bearing
- Part number (SKU)
- 89414-TV#N1>2
- EAN
- 4054362005773
- Cage
- TV

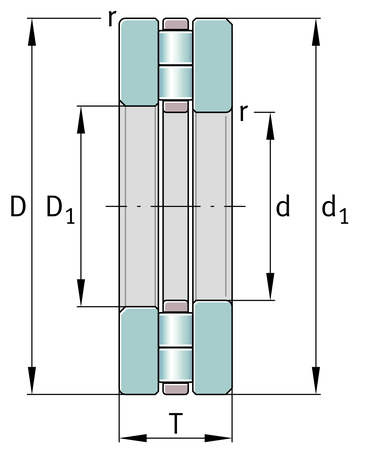

Dimensions
- Bore d
- 70 mm
- Outside diameter D
- 150 mm
- Mass
- 4.11 kg
Load ratings and operation
- Dynamic load rating C
- 475000 N
- Static load rating C₀
- 1500000 N
- Limiting speed
- 2600 1/min
Full manufacturer specification17 parameters · expand
- Axial roller and cage assembly
- K89414-TV
- Basic dynamic load rating, axial
- 475000.0 N
- Basic static load rating, axial
- 1500000.0 N
- Bore diameter housing washer
- 73.0 mm
- Cage
- TV
- Fatigue load limit, axial
- 160000.0 N
- Height
- 48.0 mm
- Housing Washer
- GS89414
- Minimum chamfer dimension
- 2.0 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- PFAS
- nein
- REACH
- REACH conform
- Reference speed
- 1000.0 1/min
- Rip diameter shaft washer
- 150.0 mm
- RoHS
- RoHS compliant
- Shaft washer
- WS89414
