Description
Axial cyl roller and cage assy -LS K812..-L, single row
INA
81206-L

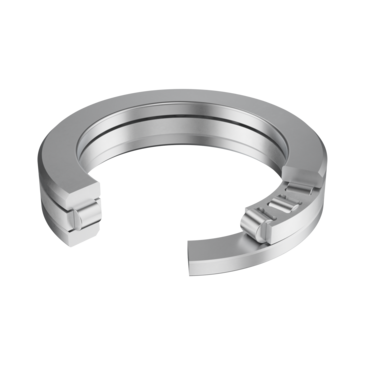

Axial cylindrical roller bearing
⌀30 × 52 mm
od EUR 50.80z VAT
netto EUR 41.30 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
81206-L—
EUR 50.80
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)81206-L#N1
EAN4012802697971
Wymiary⌀30 × 52 mm
Masa127.6 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
29 parametersIdentification
- Manufacturer
- INA
- Type
- Axial cylindrical roller bearing
- Part number (SKU)
- 81206-L#N1
- EAN
- 4012802697971
Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 52 mm
- Mass
- 127.6 g
Load ratings and operation
- Dynamic load rating C
- 64000 N
- Static load rating C₀
- 141000 N
- Limiting speed
- 7000 1/min
Full manufacturer specification19 parameters · expand
- Axial roller and cage assembly
- K81206-L
- Basic dynamic load rating, axial
- 64000.0 N
- Basic static load rating, axial
- 141000.0 N
- Bore diameter housing washer
- 32.0 mm
- Fatigue load limit, axial
- 14400.0 N
- Height
- 16.0 mm
- Housing Washer
- GS81206
- Maximum diameter of housing shoulder
- 31.0 mm
- Maximum recess radius
- 0.6 mm
- Minimum chamfer dimension
- 0.6 mm
- Minimum diameter shaft shoulder
- 50.0 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH conform
- Reference speed
- 2650.0 1/min
- Rip diameter shaft washer
- 52.0 mm
- RoHS
- RoHS compliant
- Shaft washer
- WS81206
