Description

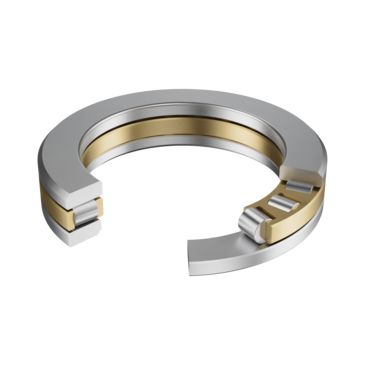

Axial cylindrical roller bearing 811..-M, single row
INA
81126-M
Axial cylindrical roller bearing
⌀130 × 170 mm
od EUR 492.34z VAT
netto EUR 400.28 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
81126-M—
EUR 492.34
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)81126-M#N1
EAN4054362004851
Wymiary⌀130 × 170 mm
Masa1.99 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
31 parametersIdentification
- Manufacturer
- INA
- Type
- Axial cylindrical roller bearing
- Part number (SKU)
- 81126-M#N1
- EAN
- 4054362004851
- Cage
- M
Dimensions
- Bore d
- 130 mm
- Outside diameter D
- 170 mm
- Mass
- 1.99 kg
Load ratings and operation
- Dynamic load rating C
- 233000 N
- Static load rating C₀
- 810000 N
- Limiting speed
- 1920 1/min
Full manufacturer specification20 parameters · expand
- Axial roller and cage assembly
- K81226-M
- Basic dynamic load rating, axial
- 233000.0 N
- Basic static load rating, axial
- 810000.0 N
- Bore diameter housing washer
- 132.0 mm
- Cage
- M
- Fatigue load limit, axial
- 72000.0 N
- Height
- 30.0 mm
- Housing Washer
- GS81226
- Maximum diameter of housing shoulder
- 135.0 mm
- Minimum chamfer dimension
- 1.0 mm
- Minimum diameter shaft shoulder
- 165.0 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH_SVHC!
- Reference speed
- 820.0 1/min
- Rip diameter shaft washer
- 170.0 mm
- RoHS
- RoHS compliant with declarable substances
- Shaft washer
- WS81226
- Track Washer
- LS130170
