Description

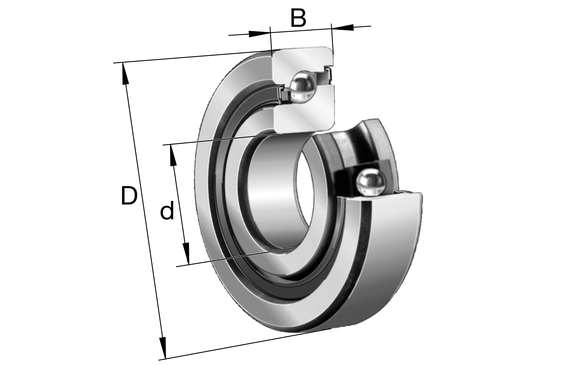

Axial angular contact ball bearings 7602..-2RS, single direction, with contact angle α = 60°, restricted tolerances, lip seals on both sides
FAG
7602015-2RS-TVP
Axial angular contact ball bearing
⌀15 × 35 × 11 mm
od EUR 137.01z VAT
netto EUR 111.39 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
7602015-2RS-TVP—
EUR 137.01
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)7602015-2RS-TVP#N1
EAN4026677716033
Wymiary⌀15 × 35 × 11 mm
Masa50 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
46 parametersIdentification
- Manufacturer
- FAG
- Type
- Axial angular contact ball bearing
- Part number (SKU)
- 7602015-2RS-TVP#N1
- EAN
- 4026677716033
- Cage
- TVP

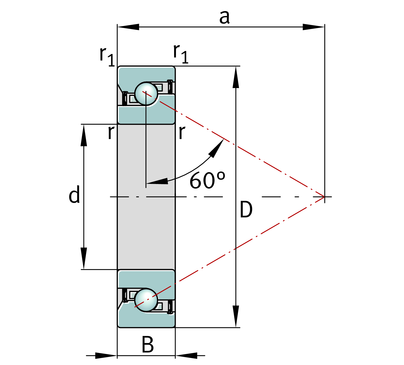

Dimensions
- Bore d
- 15 mm
- Outside diameter D
- 35 mm
- Width B
- 11 mm
- Mass
- 50 g
Load ratings and operation
- Dynamic load rating C
- 13100 N
- Static load rating C₀
- 24700 N
- Sealing
- 2RS
Full manufacturer specification34 parameters · expand
- Arrangement bearing set
- Standard
- Axial runout
- 2.0 µm
- Basic dynamic load rating, axial
- 13100.0 N
- Basic static load rating, axial
- 24700.0 N
- Bearing frictional torque
- 0.02 Nm
- Bore diameter lower tolerance
- -0.004 mm
- Bore diameter upper tolerance
- 0.0 mm
- Cage
- TVP
- Contact angle
- 60.0 °
- Diameter of housing
- 30.0 mm
- Diameter of housing clearance
- H12
- Diameter shaft
- 20.5 mm
- Diameter shaft clearance
- h12
- Distance between the apexes of the pressure cones
- 27.5 mm
- Fatigue load limit, axial
- 1120.0 N
- Limiting speed for grease lubrication
- 9000.0 1/min
- Lubricant
- Without
- Minimum chamfer dimension
- 0.6 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter lower tolerance
- -0.006 mm
- Outside diameter upper tolerance
- 0.0 mm
- PFAS
- nein
- REACH
- REACH conform
- Recommended INA precision locknut for axial locking
- AM15
- Recommended INA precision locknut for radial locking
- ZM15
- Required locknut force axial
- 5740.0 N
- Rigidity axial
- 516.0 N/µm
- RoHS
- RoHS compliant
- Sealing
- 2RS
- Thermally safe operating speed
- 6700.0 1/min
- Tightening torque for the recommended INA precision locknut
- 10.0 Nm
- Width lower tolerance
- -0.08 mm
- Width upper tolerance
- 0.0 mm
