Description

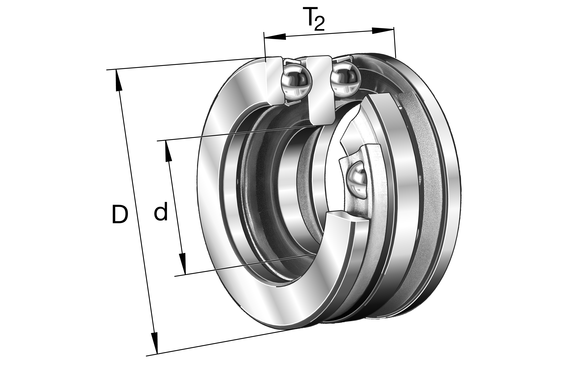

Axial deep groove ball bearing 523..-MP, double direction, solid brass cage
FAG
52328-MP
Axial deep groove ball bearing
od EUR 2,545.33z VAT
netto EUR 2,069.37 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
52328-MP—
EUR 2,545.33
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)52328-MP#N1
EAN4012801322485
Masa28.30 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
31 parametersIdentification
- Manufacturer
- FAG
- Type
- Axial deep groove ball bearing
- Part number (SKU)
- 52328-MP#N1
- EAN
- 4012801322485
- Cage
- MP
- Tolerance class
- PN
Dimensions
- Mass
- 28.30 kg
Load ratings and operation
- Dynamic load rating C
- 385000 N
- Static load rating C₀
- 1240000 N
- Limiting speed
- 1360 1/min
Full manufacturer specification21 parameters · expand
- Basic dynamic load rating, axial
- 385000.0 N
- Basic static load rating, axial
- 1240000.0 N
- Cage
- MP
- Dimensional / heat stabilization
- S0
- Fatigue load limit, axial
- 41000.0 N

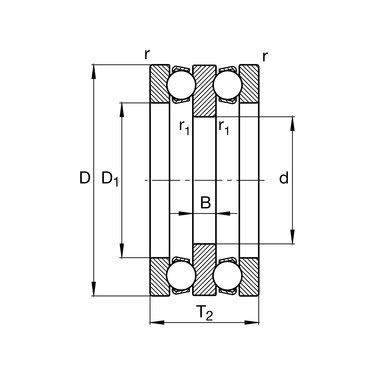

- Height
- 140.0 mm
- Height shaft washer
- 31.0 mm
- Inner diameter housing washer
- 144.0 mm
- Inner diameter shaft washer
- 120.0 mm

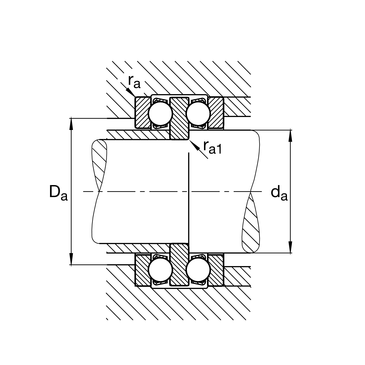

- Maximum diameter of housing shoulder
- 180.0 mm
- Maximum diameter shaft shoulder
- 140.0 mm
- Maximum filled radius
- 1.0 mm
- Minimum chamfer dimension
- 1.1 mm
- Minimum load factor
- 8.2
- Operating temperature max.
- 150.0 °C
- Operating temperature min.
- -30.0 °C
- Outer diameter housing washer
- 240.0 mm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 2550.0 1/min
- RoHS
- RoHS compliant with declarable substances
