Description

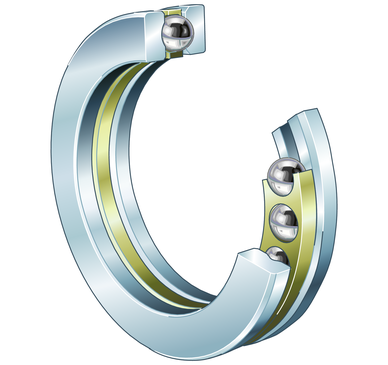

Axial deep groove ball bearing 511..-MP, single direction, solid brass cage

FAG

51172-MP-P5

Axial deep groove ball bearing

od EUR 3,555.08z VAT

netto EUR 2,890.31 · cena detaliczna

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

51172-MP-P5—

EUR 3,555.08

To orderapprox. 10 days

Brought in to order — approx. 10 working days

Symbol (SKU)51172-MP-P5#N1

EAN4012801351478

Masa21.30 kg

Buying for a company?

A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.

Open a business account →

Technical data

31 parameters

Identification

Manufacturer: FAG
Type: Axial deep groove ball bearing
Part number (SKU): 51172-MP-P5#N1
EAN: 4012801351478
Cage: MP
Tolerance class: P5

Dimensions

Mass: 21.30 kg

Load ratings and operation

Dynamic load rating C: 405000 N
Static load rating C₀: 2020000 N
Limiting speed: 1110 1/min

Full manufacturer specification21 parameters · expand

Basic dynamic load rating, axial: 405000.0 N
Basic static load rating, axial: 2020000.0 N
Cage: MP
Dimensional / heat stabilization: S1
Fatigue load limit, axial: 46500.0 N
Height: 65.0 mm
Inner diameter housing washer: 364.0 mm
Inner diameter shaft washer: 360.0 mm
Maximum diameter of housing shoulder: 392.0 mm
Maximum filled radius: 2.0 mm
Minimum chamfer dimension: 2.0 mm
Minimum diameter shaft shoulder: 408.0 mm
Minimum load factor: 22.0
Operating temperature max.: 200.0 °C
Operating temperature min.: -30.0 °C
Outer diameter housing washer: 440.0 mm
Outer diameter shaft washer: 436.0 mm
PFAS: nein
REACH: REACH compliant with declarable lead proportion
Reference speed: 930.0 1/min
RoHS: RoHS compliant with declarable substances
