Description

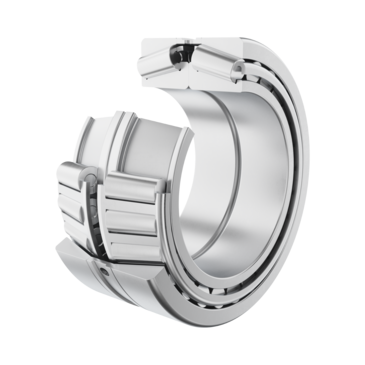

Tapered roller bearing set 332..-DF, X-arrangement
FAG
33219-DF-A290-320
Tapered roller bearing set
⌀95 × 170 mm
od EUR 537.42z VAT
netto EUR 436.93 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
33219-DF-A290-320—
EUR 537.42
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)33219-DF-A290-320#N1
EAN4054372894312
Wymiary⌀95 × 170 mm
Masa11.21 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
36 parametersIdentification
- Manufacturer
- FAG
- Type
- Tapered roller bearing set
- Part number (SKU)
- 33219-DF-A290-320#N1
- EAN
- 4054372894312
- Cage
- Standard
- Tolerance class
- P6X

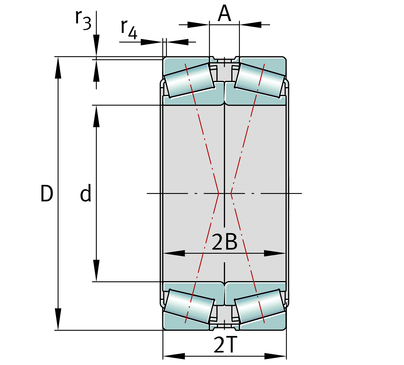

Dimensions
- Bore d
- 95 mm
- Outside diameter D
- 170 mm
- Mass
- 11.21 kg
Load ratings and operation
- Dynamic load rating C
- 640000 N
- Static load rating C₀
- 1120000 N
- Limiting speed
- 3950 1/min
Full manufacturer specification24 parameters · expand
- Axial internal clearance
- A290-320
- Cage
- Standard
- Dynamic axial load factor
- 1.65
- Fatigue load limit, radial
- 134000.0 N
- Inner ring total width
- 116.0 mm
- Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
- 0.41
- Matched arrangement
- F

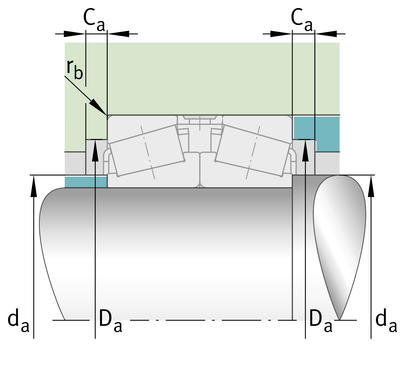

- Maximum diameter of housing shoulder
- 158.0 mm
- Maximum diameter of shaft shoulder
- 107.0 mm
- Maximum fillet radius of housing
- 2.5 mm
- Minimum axial space
- 9.0 mm
- Minimum chamfer dimension of outer ring back face
- 2.5 mm
- Minimum diameter of housing shoulder
- 144.0 mm
- Number of rows
- 2
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outer ring total width
- 116.0 mm
- PFAS
- nein
- Quality level
- Standard
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Static axial load factor
- 1.61
- Thermal speed rating
- 2400.0 1/min
- Width of spacer
- 28.0 mm
