Description

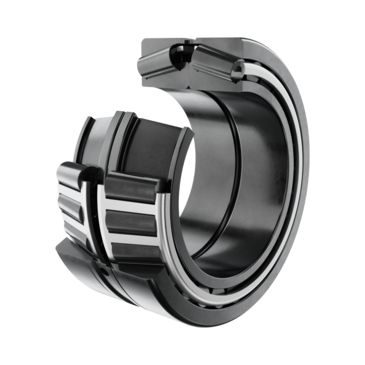

Tapered roller bearing set 322..-DF, X-arrangement
FAG
32236-XL-DF-J30PC-A500-550
Tapered roller bearing set
⌀180 × 320 mm
od EUR 5,315.65z VAT
netto EUR 4,321.67 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
32236-XL-DF-J30PC-A500-550—
EUR 5,315.65
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)32236-XL-DF-J30PC-A500-550#N1
EAN4054369355468
Wymiary⌀180 × 320 mm
Masa61.60 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
37 parametersIdentification
- Manufacturer
- FAG
- Type
- Tapered roller bearing set
- Part number (SKU)
- 32236-XL-DF-J30PC-A500-550#N1
- EAN
- 4054369355468
- Cage
- Standard
- Tolerance class
- PN
Dimensions
- Bore d
- 180 mm
- Outside diameter D
- 320 mm
- Mass
- 61.60 kg
Load ratings and operation
- Dynamic load rating C
- 2150000 N
- Static load rating C₀
- 3300000 N
- Limiting speed
- 2490 1/min
Full manufacturer specification25 parameters · expand
- Axial internal clearance
- A500-550
- Cage
- Standard
- Dynamic axial load factor
- 1.5
- Fatigue load limit, radial
- 435000.0 N
- Inner ring total width
- 172.0 mm
- Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
- 0.45
- Marketing category
- XL
- Matched arrangement
- F
- Maximum diameter of housing shoulder
- 302.0 mm
- Maximum diameter of shaft shoulder
- 204.0 mm
- Maximum fillet radius of housing
- 4.0 mm
- Minimum axial space
- 10.0 mm
- Minimum chamfer dimension of outer ring back face
- 4.0 mm
- Minimum diameter of housing shoulder
- 267.0 mm
- Number of rows
- 2
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -30.0 °C
- Outer ring total width
- 182.0 mm
- PFAS
- nein
- Quality level
- XL
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Static axial load factor
- 1.47
- Thermal speed rating
- 1020.0 1/min
- Width of spacer
- 40.0 mm
