Description

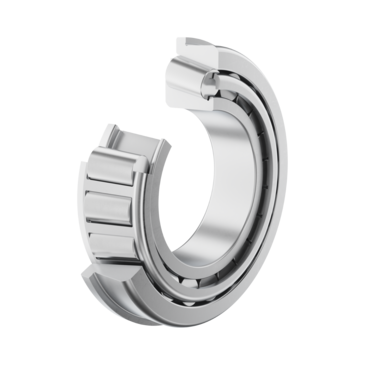

Tapered roller bearings with flange 302, main dimensions acc. to DIN 720, separable
FAG
30210-A-R
Tapered roller bearing
⌀50 × 90 mm
od EUR 63.20z VAT
netto EUR 51.38 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
30210-A-R—
EUR 63.20
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)30210-A-R#N1
EAN4012801039642
Wymiary⌀50 × 90 mm
Masa570 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
43 parametersIdentification
- Manufacturer
- FAG
- Type
- Tapered roller bearing
- Part number (SKU)
- 30210-A-R#N1
- EAN
- 4012801039642
- Cage
- Standard
- Tolerance class
- PN

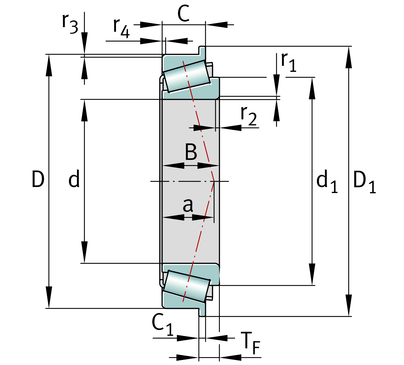

Dimensions
- Bore d
- 50 mm
- Outside diameter D
- 90 mm
- Mass
- 570 g
Load ratings and operation
- Dynamic load rating C
- 79000 N
- Static load rating C₀
- 96000 N
- Limiting speed
- 8200 1/min
Full manufacturer specification31 parameters · expand
- Cage
- Standard
- Comparative designation to ISO 10317 and ISO 355
- T3DB050
- Distance between the apexes of the pressure cones
- 20.0 mm
- Dynamic axial load factor
- 1.43
- Fatigue load limit, radial
- 11500.0 N
- Guidance rib diameter of inner ring
- 68.8 mm
- Internal design
- Standard
- Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
- 0.42

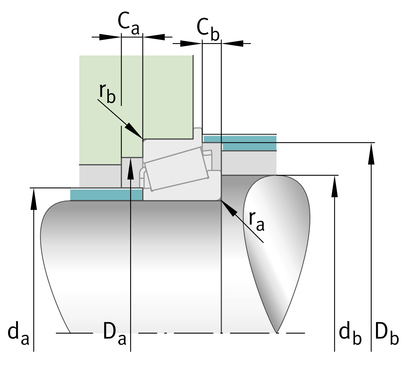

- Maximum diameter of housing shoulder
- 83.0 mm
- Maximum diameter of shaft shoulder
- 58.0 mm
- Maximum fillet radius of housing
- 1.5 mm
- Maximum fillet radius of shaft
- 1.5 mm
- Minimum axial space
- 4.5 mm
- Minimum chamfer dimension of inner ring back face
- 1.5 mm
- Minimum chamfer dimension of outer ring back face
- 1.5 mm
- Minimum diameter of housing shoulder
- 85.0 mm
- Minimum diameter of shaft shoulder
- 57.0 mm
- Number of rows
- 1
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter flange
- 95.0 mm
- PFAS
- nein
- Quality level
- Standard
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Static axial load factor
- 0.79
- Thermal speed rating
- 5000.0 1/min
- Width assembled flange bearing
- 8.75 mm
- Width flange
- 4.0 mm
- Width, inner ring
- 20.0 mm
- Width, outer ring
- 17.0 mm
