Description
Axial spherical roller bearing 293..-E1-XL-MB, with flanging ring
FAG
29380-E1-XL-MB
Axial spherical roller bearing
⌀400 × 620 mm
od EUR 18,147.04z VAT
netto EUR 14,753.69 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
29380-E1-XL-MB—
EUR 18,147.04
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)29380-E1-XL-MB#N1
EAN4012802190199
Wymiary⌀400 × 620 mm
Masa143.16 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
41 parametersIdentification
- Manufacturer
- FAG
- Type
- Axial spherical roller bearing
- Part number (SKU)
- 29380-E1-XL-MB#N1
- EAN
- 4012802190199
- Cage
- MB

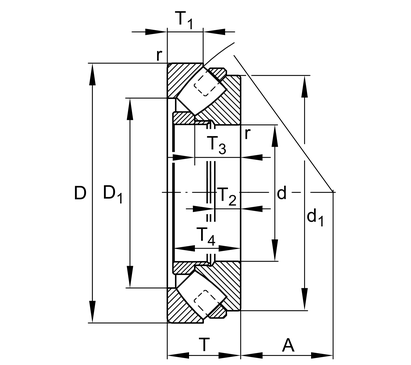

Dimensions
- Bore d
- 400 mm
- Outside diameter D
- 620 mm
- Mass
- 143.16 kg
Load ratings and operation
- Dynamic load rating C
- 4550000 N
- Static load rating C₀
- 16300000 N
- Limiting speed
- 990 1/min
Full manufacturer specification30 parameters · expand
- Basic dynamic load rating, axial
- 4550000.0 N
- Basic static load rating, axial
- 16300000.0 N
- Bore diameter housing washer
- 494.0 mm
- Cage
- MB
- Constricted width and inclination variation
- Standard
- Distance of the center point
- 225.0 mm
- Fatigue load limit, axial
- 1720000.0 N
- Handling thread holes
- Without
- Heat treatment
- Standard
- Height of shaft washer
- 48.0 mm
- Height of shaft washer, inc. lip ring
- 127.0 mm
- Height of the housing washer
- 64.0 mm
- Height of the shaft washer
- 83.0 mm
- Locating feature, housing washer
- Without
- Marketing category
- XL

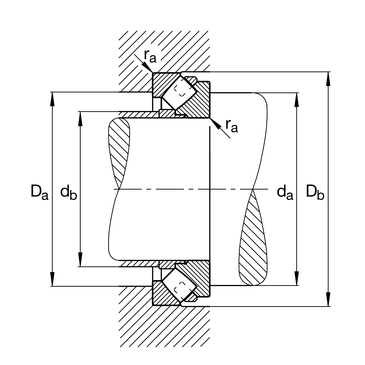

- Maximum diameter of housing shoulder
- 557.0 mm
- Maximum distance sleeve
- 429.0 mm
- Maximum recess radius
- 5.0 mm
- Minimum bore diameter housing
- 634.0 mm
- Minimum chamfer dimension
- 6.0 mm
- Minimum diameter shaft shoulder
- 510.0 mm
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- Reference speed
- 500.0 1/min
- Rip diameter shaft washer
- 575.0 mm
- RoHS
- RoHS compliant with declarable substances
- Section height
- 132.0 mm
- Test certificate
- Without
